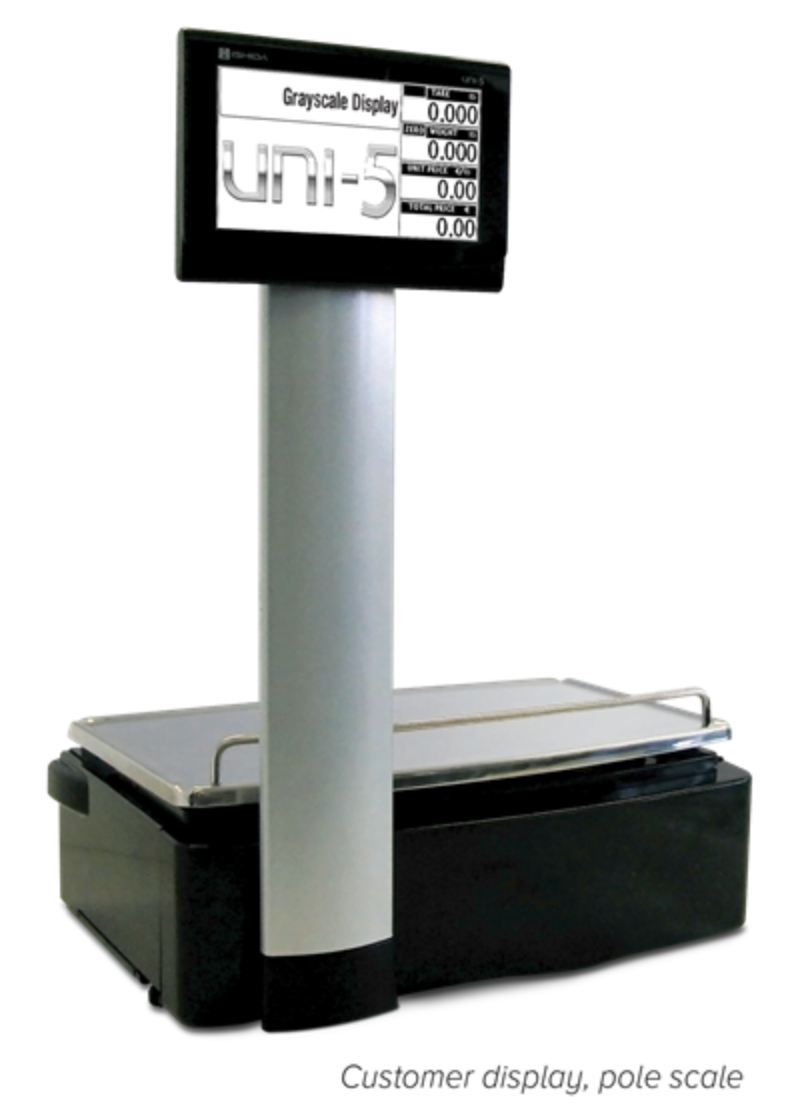

Uni-5 Scale Pole

Simple, durable and robust design
Fixed side-load cassette with virtual function
Prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
Batch printing
Graphic-based QR code printing
Customizable color touchscreen with adjustable viewing angle and tactile keypad
Programmable tactile preset keys
Flash ROM for simple update of application firmware
Self-service mode
Cash register interface
Fully compliant with RoHS regulations for a completely lead-free machine
Optional Wi-Fi kit (factory installation recommended)
Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®

Value By Design

Ishida’s Uni-5 Series of price-computing scales and printers are positioned to be one of the best values in retail weighing today. Retail customers may choose from three distinct printer and scale-base configurations— all with the same easy-to-use universal control panel.

Whether selecting the straightforward bench model, bench with pole, or elevated head style, Uni-5 users can appreciate a large, full-color touchscreen, while customers view advertised specials and details of their purchase on an ultra-bright customer-side LCD.

The Uni-5 is more than just attractively priced. It’s also attractive in design, with a polished, black polymer housing that’s easy to clean, and a convenient sideloading printer for quick label changing. A low-profile design and green energy consumption round out a long list of essential features for today’s progressive retail marketplace

Power:
100 to 240 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Standby: 50 W

Resolution:
3,000 display divisions maximum

Communications:
LAN
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
USB-A (service, transaction data)
RJ11

Operating System:
VxWorks

Memory Capacity:
Flash ROM 4 MB

Preset Keys:
99 programmable pages, 20 PLUs each
60 programmable tactile preset keys
24 tactile function keys

Display:
Operator: touch panel, 7-in color LCD
Customer: grayscale LCD, 7 in (480 × 234 px)
Unit price: six digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Printhead: 2.2 in (56 mm) direct thermal, effective 2.2 in (56 mm)
Resolution: 200 dpi (8 dot/mm)
Speed: 4.7 in/sec (120 mm/sec) max
Min. weight: 0.015 lb (0.006 kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, Custom

Label Size:
Type: Die-cut, continuous
Width: 1.5 to 2.5 in (38 to 64 mm)
Length: 1.5 to 7.9 in (38 to 200 mm)

Label Roll:
I.D.: 1.6-in (40 mm) min
O.D.: 3.9-in (100 mm) max
Backing width: 2.6-in (66 mm) max

Platter:
15.7 × 10.8 in (399 × 274 mm)

Weight:
Approx. 47 lb (21.3 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
20 to 85% RH (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 07-099
cULus Listed
