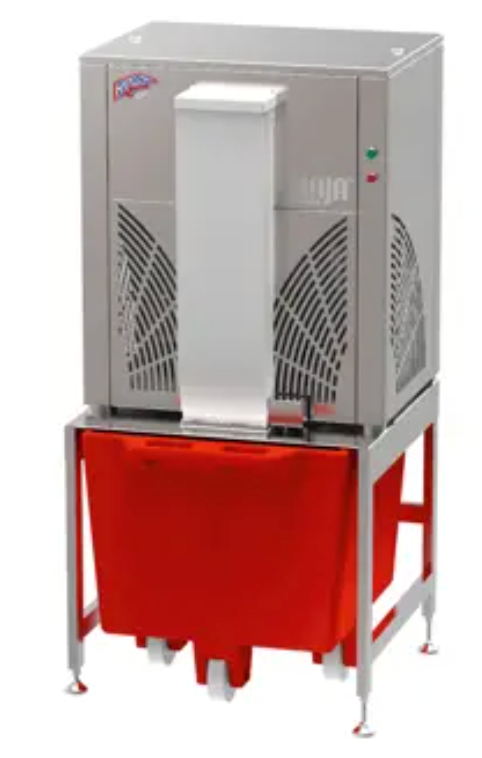

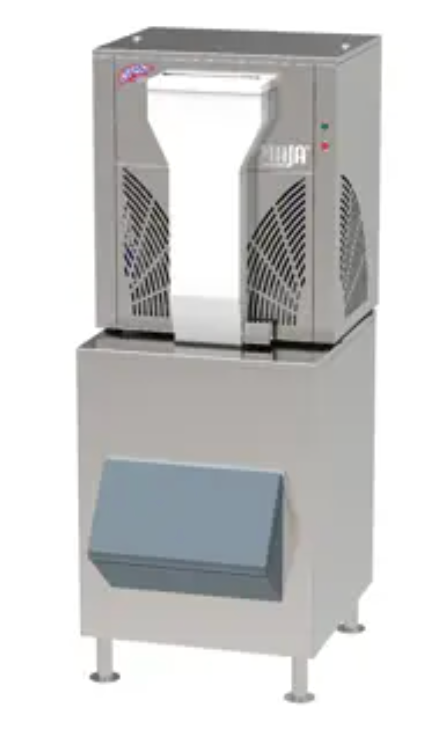

Maja SAH 250/800 EcoPro

Maja SAH 250/800 EcoPro

The compact flake ice machines MAJA-SAH-L offer a wide choice of ice producing units ranging from 250 kg ice output up to 1,500 kg every 24 hours. With an integrated condensing unit, the MAJA-SAH perfectly meets any flake ice requirements of butcheries, bakeries, supermarkets, hotels, restaurants, catering businesses and various non-food applications.

Hygienic, food-safe ice production

MAJA flake ice machines are labeled HY-GEN protected. This stands for excellent sanitary conditions:

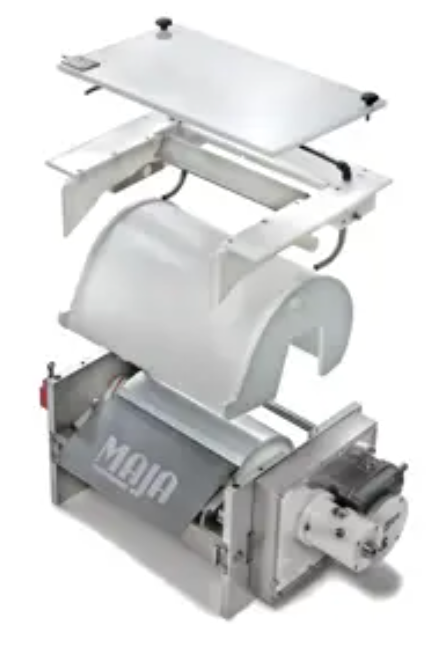

  • Easy access to cleaning relevant parts from all sides without the use of tools
  • Easily removable, round plastic water tank
  • Water tank without built-in parts, angles, edges and screws allowing easy and thorough cleaning
  • Automatic water pipe rinsing after 24 hours without ice production
  • Special hygiene features in accordance with the German drinking water regulations

Refrigeration

  • Integrated condensing unit in air-cooled execution (L), water-cooled execution (W) on demand
  • Refrigerant R449A (GWP 1397)
  • Integrated heat exchanger for optimum energy efficiency
  • Refrigerant stop valve and refrigerant pump-down when the machine stops

Easy operation

  • Easy operation by ON/OFF pushbuttons (MAJA SAH 250/500), or ON/OFF remote-control panel (MAJA SAH 800-1500)
  • Control panels with program function optionally available
  • Reliable SPS control unit
  • Solid machine structure, frame and housing in stainless steel

Specifications

  MAJA
SAH 250 L
MAJA
SAH 500 L
MAJA
SAH 800 L
MAJA
SAH 1500 L
Ice output* 250kg/24h
550lbs/24h
500kg/24h
1100lbs/24h
800kg/24h
1760lbs/24h
1500kg/24h
3300lbs/24h
Water consumption 0.25m³/24h 0.50m³/24h 0.80m³/24h 1.5m³/24h
Refrigerant R449A (GWP 1397) R449A (GWP 1397) R449A (GWP 1397) R449A (GWP 1397)
Refrigerant charge/CO2e 1.6kg/2.2t 2.1kg/2.9t 4.2kg/4.9t 5.2kg/7.3t
Machine dimensions
WxDxH
776x581x996mm
31x23x39”
776x581x996mm
31x23x39”
1170x760x1150mm
46x30x45”
1430x780x1230mm
56.3x30.7x48.4”
Condensing unit air-cooled air-cooled air-cooled air-cooled
Electrical connection 1.26kW/1.7h.p.
1AC/50Hz/ 230V/N/PE
2.05kW/2.75h.p.
3AC/50Hz/ 400V/PE
2.52kW/3.78h.p.
3AC/50Hz/ 400V/PE
4.37kW/5.868h.p.
3AC/50Hz/ 400V/N/PE
Water connection Water supply 3/4”
Drain water 3/4”
Water supply 3/4”
Drain water 3/4”
Water supply 3/4”
Drain water 1”
Water supply 3/4”
Drain water 1”
Weight 145kg
319lbs
180kg
396lbs
280kg
616lbs
355kg
781lbs

The indicated ice output* is an approximate value (depending on installation conditions)
Water temperature +16°C (+60.8°F), ambient temperature +20°C (+68.0°F). Higher temperatures may lead to reduced ice output.

Versions

Condensing unit in
water-cooled execution (W)
For a temperature difference IN-OUT of about 10-20K
Condensing unit cooling
by heat exchange circuit (WS)
For a temperature difference of heat transfer medium
or water IN-OUT of about 5K (tmi n-8°C)

Accessories

Ozone degermination  Creating the best-possible hygiene conditions for the inlet water supply
Automatic self-cleaning  MAJA-SCS for time-saving and optimum hygiene safety by automating the cleaning process
Control Panel ON/OFF
for remote operation
With wall holdfast and cable 5m
Control Panel Timer
with timer function
Freely programmable ice production and cleaning cycles
External water
pre-heater
For low-water/ambient temperatures between +2°C and +5°C
