Maja A-Skin

Maja A-Skin

Industry-leading skinning performance

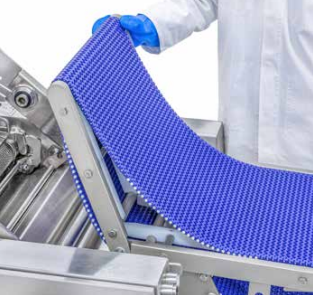

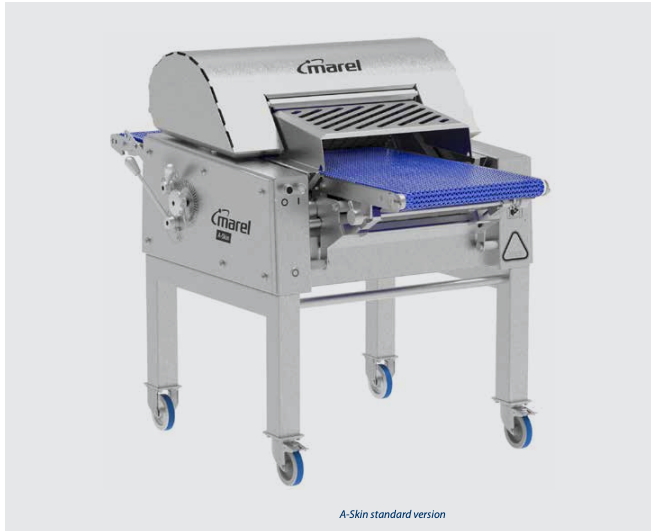

The A-Skin is a fully automatic derinding skinner that allows you to level up your deboning line and makes it fit for the future. It is a modular platform and thus a highly logistic solution that enables individual configuration and sets safety, hygiene, and yield standards to cater to your industrial skinning requirements. Unique features, such as the bypass function and the cantilever belt mechanism, offer highly flexible use of the machine and unmatched serviceability and hygiene conditions.

Wide operational window

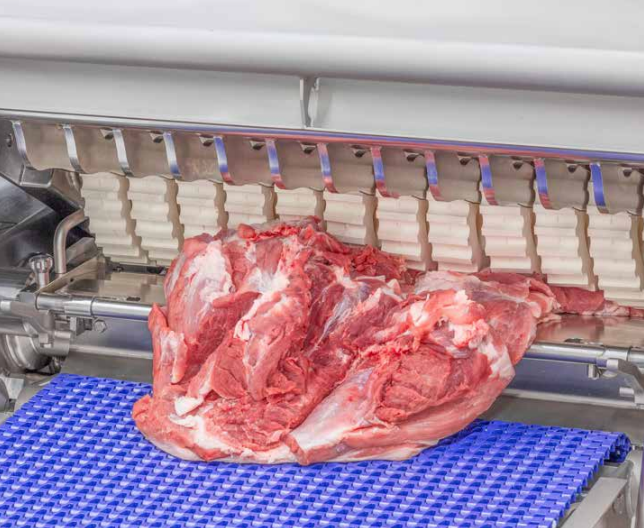

Available in three cutting widths, the A-Skin is an ideal derinding skinner for medium-sized processors and big industrial players that need a solution that performs exceptionally in a wide variety of applications and specific customer layouts, and can withstand high throughput in an industrial environment. It is suited for fully automatic derinding of all fresh cuts of pork, e.g., belly/belly dewlap, back and neck fat, cheek, shoulder and ham topside, boneless pork shoulder (also with boned knuckle), boneless pork ham and without topside.

Specifications

Type

Cutting width
mm

Machine width
mm

Machine depth
mm

Machine height
mm

A-Skin 45

434 (17'')

1006

1912

1313 (1644)

A-Skin 55

554 (21.8'')

1126

1912

1313 (1644)

A-Skin 75

754 (29.7'')

1326

1912

1313 (1644)

Versions

Type

Cutting width

A-Skin 45

434 mm (17'')

A-Skin 55

554 mm (21.8'')

A-Skin 75

754 mm (29.7'')

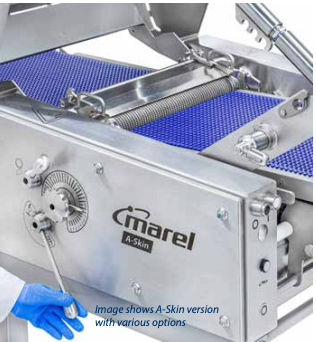

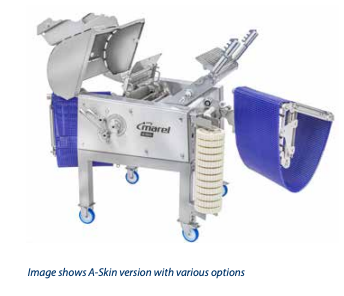

Accessories

  • Multiple height adjustments on exit conveyor
  • Lower base options
  • Infeed and exit conveyor belts available in different lengths
  • Funnel-shaped protective cover for outlet belt
  • Special execution with integrated rind discharge belt
  • Special subframe for the use of mincer carts for rind discharge
  • C-shaped subframe for higher machine position above deboning lines
  • Standard subframe without skinbox support, suitable for the use of trolleys to collect all rind removed
  • Special execution including automatic rind discharge conveyer belt
  • Separate lateral rind discharge belt KAB 270 (only with special subframe)
  • Special execution with operating elements on right side panel
