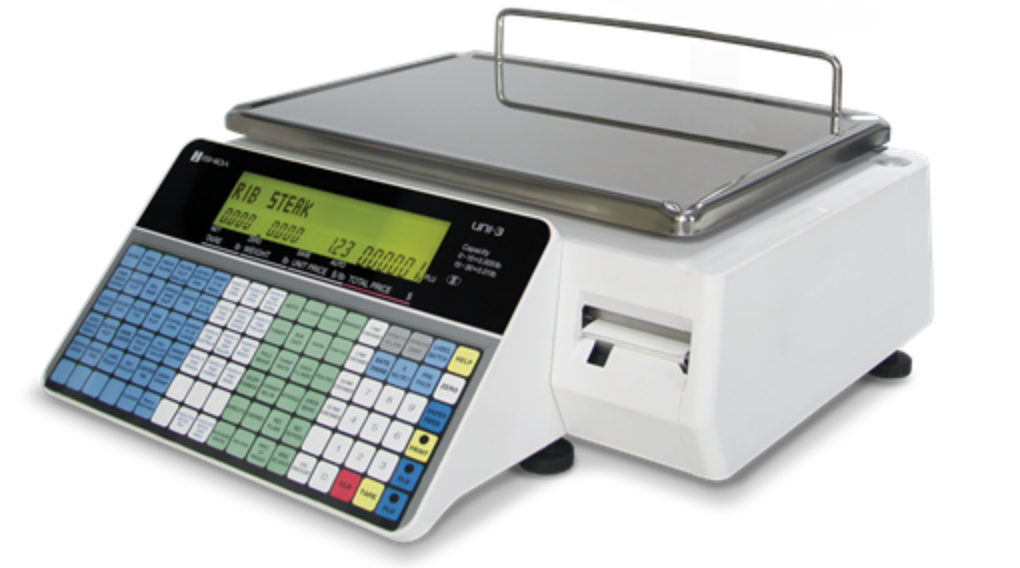

Ishida UNI3 L2 Bench

Simple, durable and robust design
Fixed side-load cassette with virtual function
Prints safe handing instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
Batch printing
Dynamically generated QR code printing
Backlit alphanumeric LCD display
Programmable tactile preset keys
Flash ROM for simple update of application firmware
Fully compliant with RoHS regulations for a completely lead-free machine
Optional Wi-Fi kit (factory installation recommended)
Optional linerless kit
Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®

With premium-class presets, fast print speed and extensive labeling functions, the Ishida Uni-3 Series offers more flexibility and features—all for less cost than comparable price computing scales with printers.

With three models and two display types, operators can easily find an Ishida Uni-3 to fit specific application needs. Ethernet or optional wireless communication enables any Uni-3 to be added to an existing network—ensuring operators have consistent control of all scales in your store.

Product management software ensures easy file maintenance as well as PLU and tare weight consistency throughout your operation. The power of the Uni-3 is at your fingertips with configurable preset buttons to represent PLUs, container tare values, label formats, images and logos.

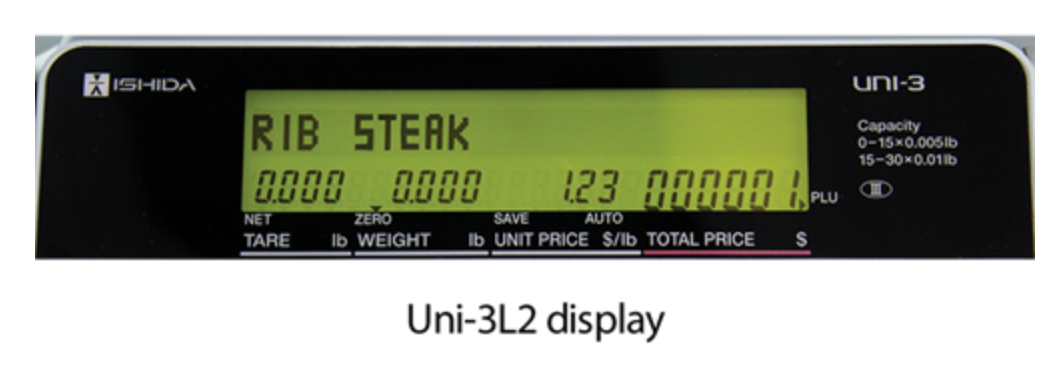

The Uni-3L1 model features a vibrant blue alphanumeric display with a sharp white 16-segment capability. The Uni-3L2 model features a clear LCD display with one line alphanumeric and one line numeric. Each model offers a matching customer display.

Power:
100 to 240 VAC, 50/60Hz

Power Consumption:
In operation: 100 W
Stand-by: 50 W

Resolution:
3,000 display divisions maximum

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
USB-A (service, transaction data)

Operating System:
VxWorks

Memory Capacity:
Flash ROM 2 MB

Preset Keys:
84 programmable tactile preset keys (168 presets when assigning two items per key)
18 tactile function keys

Display:
Operator L1: LCD, blue backlight, alphanumeric (23 digits 16 seg)
Operator L2: LCD, green backlight, alphanumeric
(192 × 16DM, 23 digits 7 seg)
Unit price: five digits
Tare: four digits
Weight: five digits
Total price: six digits

Printer:
Printhead: 2.2 in (56 mm) direct
thermal, effective 2.2 in (56 mm)
Resolution: 200 dpi (8 dot/mm)
Speed: 3.9 in/sec (100 mm/sec) max
Min. weight: 30 lb, 0.015 lb (0.006 kg) 60 lb, 0.03 lb (0.012 kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, QR

Label Size:
Type: Die-cut, continuous, optional linerless label
Width: 1.5 to 2.5 in (38 to 64 mm)
Length: 1.2 to 6.9 in (30 to 175 mm)

Label Roll:
I.D.: 1.6-in (40 mm) min
O.D.: 3.9-in (100 mm) max
Backing width: 2.6-in (66 mm) max

Platter:
15.5 × 9.5 in (394 × 241 mm)

Weight:
Approx. 47 lb (21.3 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
20 to 85% RH (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 07-005
cULus Listed
