Ishida Scale M# IP-Ai

Scale, Ishida Uni-3L2 Price Computing Pole 0-15lb x 0.005lb/15-30lb x .01lb

Packing House features (i.e., build a pallet)
High-capacity label roll with more than five times the length of a standard roll
Fixed high-capacity front-load cassette
High-resolution printhead
Prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
Batch printing
Graphic-based QR code printing
Large customizable color touchscreen with adjustable viewing angle and tactile keypad
Assign color images to preset keys
Display videos with sound
PC-based with a solid-state drive for speed and reliability
Secure remote access
Fully compliant with RoHS regulations for a completely lead-free machine
Optional Wi-Fi kit (factory installation recommended)
Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®

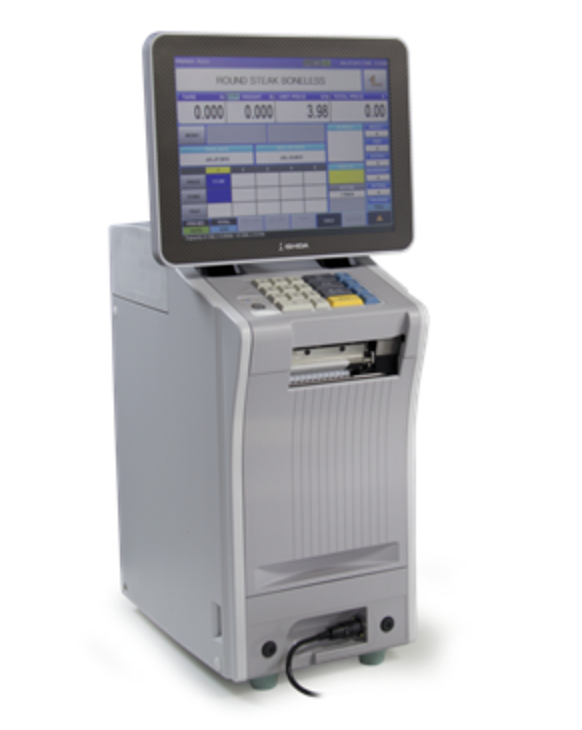

Ishida’s IP-Ai PC-based hand-wrapping system is the ideal complement to high-volume automatic wrappers. The IP-Ai is capable of fast weighing and print speeds up to 5.9 inches per second. Its front-loading, large nine-inch label capacity keeps businesses up and running longer. Create eye-catching labels with the ability to store and print custom graphics.

Designed to enhance visibility and productivity, the large color touchscreen provides easy access to PLUs via category keys. Networking capability with Ishida’s ScaleLink Pro 5 and other third-party scale management software helps maintain consistent and accurate pricing.

From ergonomic design to high-speed performance, the IP-Ai offers the latest technology to streamline prepackaging operations.

Power:
110 to 120 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Stand-by: 50 W

Resolution:
30 lb base, 3,000 display divisions maximum
60 lb base, 6,000 display divisions maximum

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
Four USB-A (service, transaction data)
SD card (for transaction data, 16GB max)

Operating System:
Linux

Memory Capacity:
SSD 2 GB

Preset Keys:
99 dynamically programmed groups with 99 subpages
19 tactile function keys

Display:
Operator: Resistive thin film analogue touch panel, TFT LCD color touchscreen with LED backlight with SVGA
12.1 in (800 × 600 px)
Unit price: six digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Printhead: 3.1 in (80 mm) direct thermal, effective 3 in (78mm)
Resolution: 300 dpi (12 dot/mm)
Speed: 5.9 in/sec (150 mm/sec) max
Min. weight: 30 lb, 0.015 lb (0.006 kg) 60 lb, 0.03 lb (0.015kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, Custom

Label Size:
Type: Die-cut
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30 to 200 mm)

Label Roll:
I.D.: 3.0-in (76 mm) min
O.D.: 9.0-in (230 mm) max
Backing width: 3.2-in (82 mm) max

Platter:
30 lb: 16 × 10 in (406 × 254 mm)
60 lb: 15.5 × 10.5 in (394 × 267 mm)

Weight:
Approx. 55 lb (25 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40°C)

Humidity:
20 to 85% (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 06-029
cULus Listed
