Scale, Uni 7 Bench 60# Capacity x .02

Scale, Uni 7 Bench 60# Capacity x .02

With the UNI-7, you get:

  • A pre-installed Web browser, allowing you to download data for printing or to be emailed to a designated site.
  • A compact design with the dual label and receipt cassette positioned at the front, freeing up more counter space for more fluent transactions.
  • An expandable memory, for holding visual files such as logos, store messages, and nutrition data, to appeal to customers and show your credibility.
  • Simple, durable and robust design
  • Removable front-load cassette, with up to seven cassette configurations
  • Prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Batch printing
  • Graphic-based QR code printing
  • Customizable color touchscreen with adjustable viewing angle and tactile keypad
  • Programmable tactile preset keys
  • Flash ROM for simple update of application software
  • Self-service mode
  • Cash register interface
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Optional Wi-Fi kit (factory installation recommended)
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®

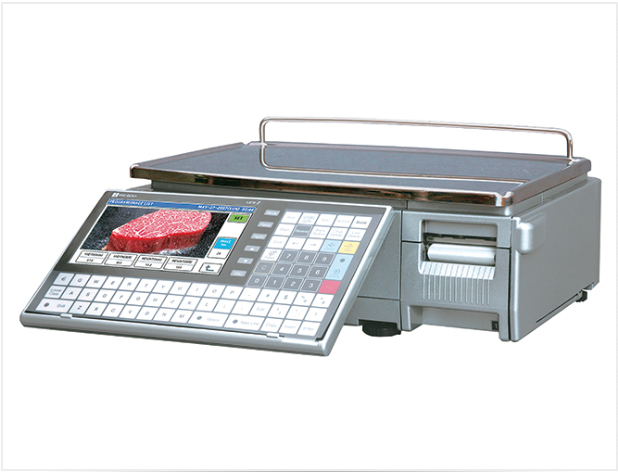

Whether operated from a back room, poised on a deli counter, or suspended somewhere in between, Ishida’s Uni-7 is a must for today’s modern retail settings. The complete Uni-7 Series showcases models for every station type, each a completely networkable scale base and printer, and each a variation on the same highly functional Uni-7 interface.

Front and center is the Uni-7’s sleek titanium appearance and one-of-a-kind color touchscreen. Users can customize the display with their own unique product catagories and PLUs. For the most lifelike experience, a tactile sensation and audible tone signals each press of a button. But that’s just the beginning. Uni-7 is equipped with a quick-change, front-loading label cassette, and multilingual capability. Easily manage everything from frequent price changes to future meat and nutrition-labeling tasks. Innovation at its best, Ishida’s Uni-7 Series is the tool of choice for unifying workspaces everywhere.

A perfect counter-level or bench-top device, this all-in-one scale offers weighing, printing and price computing. Advertise directly to your customers on their own full-color display, housed within the scale itself (bench model) or on an elevated pole.

Power:
100 to 240 VAC, 50/60 Hz

Power Consumption:
In operation: 100 W
Stand-by: 50 W

Resolution:
3,000 display divisions maximum

Communications:
LAN
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
USB-A (service, transaction data)
Two RJ11
SD card (expanded storage, 8GB max)

Operating System:
VxWorks

Memory Capacity:
Flash ROM 4 MB expandable to 2 GB

Preset Keys:
99 programmable pages, 20 PLUs each
60 programmable tactile preset keys
24 tactile function keys

Display:
Operator: touchscreen, color 7-in LCD
Customer: color LCD, 7 in (480 × 234 px)
Unit price: six digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Printhead: 2.2 in (56 mm) direct
thermal, effective 2.2 in (56 mm)
Resolution: 200 dpi (8 dot/mm)
Speed: 4.7 in/sec (120 mm/sec) max
Min. weight: 0.015 lb (0.006 kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, Custom

Label Size:
Type: Die-cut, continuous
Width: 1.2 to 2.5 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)

Label Roll:
I.D.: 1.6-in (40 mm) min
O.D.: 3.9-in (100 mm) max
Backing width: 2.6-in (66 mm) max

Platter:
15.7 × 10.8 in (399 × 274 mm)

Weight:
Bench/pole: approx. 30 lb (13.6 kg)
Hanging: approx. 42 lb (19.1 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
20 to 85% RH (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 07-099
cULus Listed



Ishida Retail Scale, Uni-7 Bench 15 x 0.005lb/30 x 0.01lb Wired lan, 115VAC
