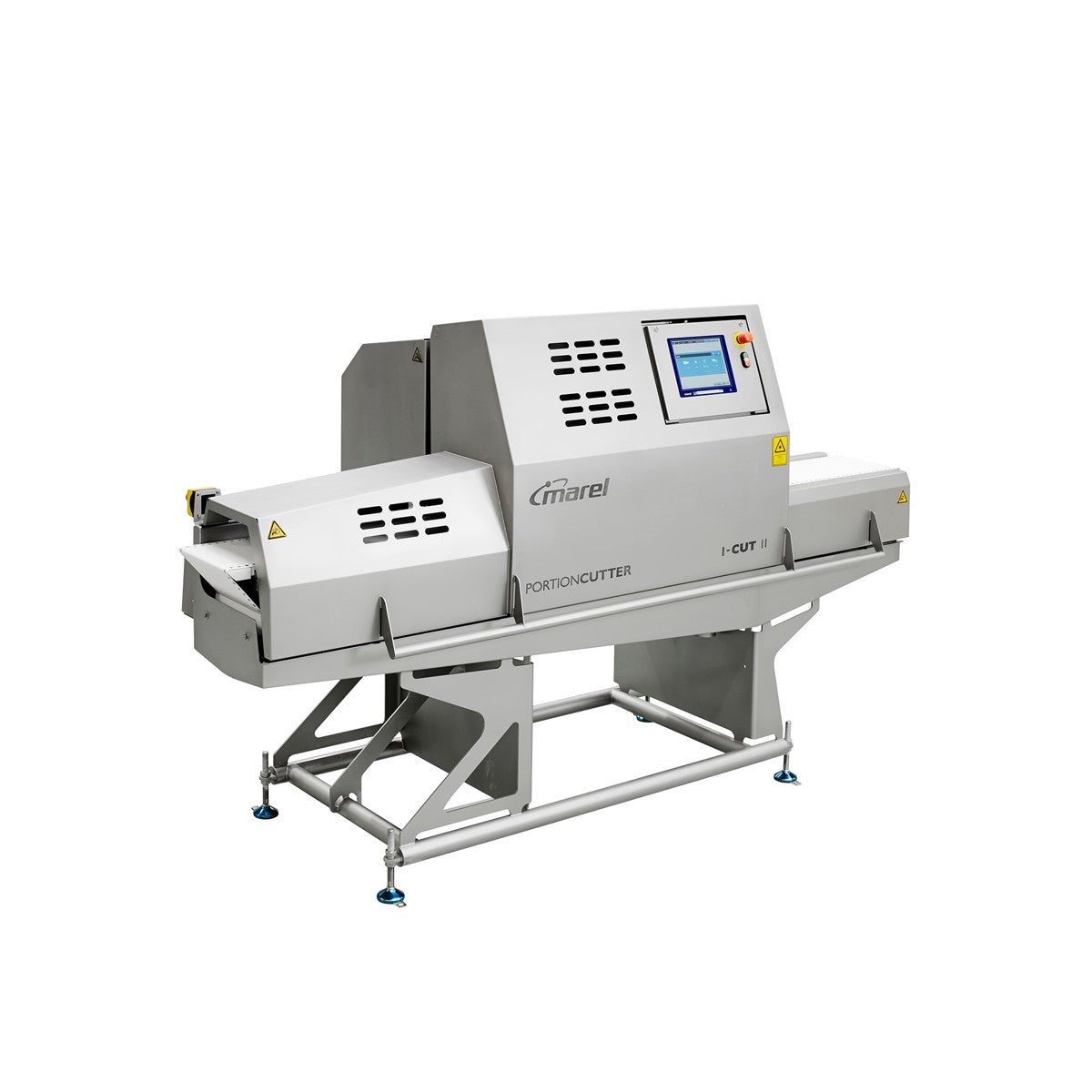

I-Cut 11

I-Cut 11

The I-Cut 11 has been designed with the latest generation processing software with maximum programming flexibility and a variety of specialized cutting patterns to guarantee maximum return on investment.

The machine features a powerful computer and advanced laser vision system that ensure unmatched accuracy and minimal giveaway. The new generation touchscreen makes daily operation and programming easier than ever before.

With the compact design, the I-Cut 11 is easy to install in any small plant layouts and is easy to integrate with other JBT Marel equipment.

Features

  • Powerful computer with proven servo motor technology for high-precision cutting and long lifetime
  • Easy-to-operate touchscreen makes daily operation easy

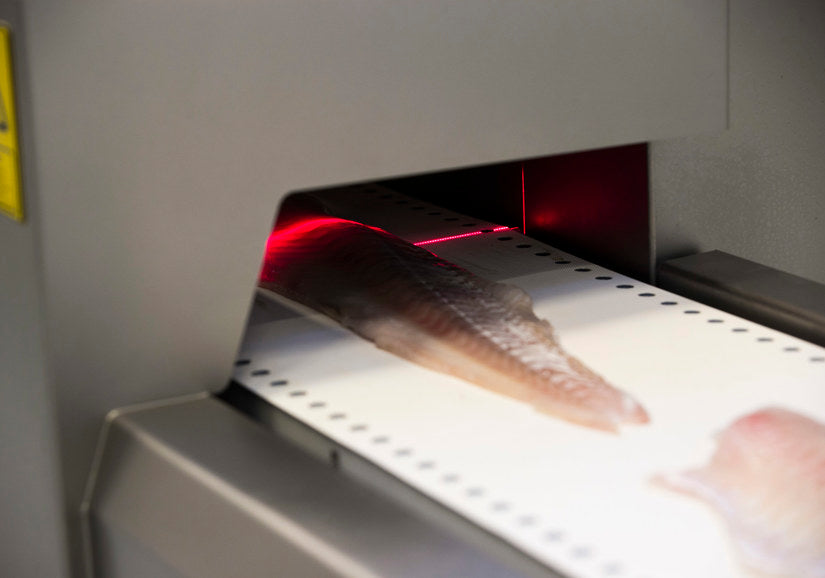

  • Laser vision system with 200 Hz camera technology ensures extreme accuracy
  • High-speed portioning in a 90° angle
  • Small footprint–the compact design fits into small plant layouts
  • Ropanyl belts for easy sanitization
  • Quick release belts for easy release and removal of belts for cleaning–no tools required

Specifications

Max. product length  800 mm (31.5”)
Max. product width 250 mm (9.8”)
Max. product height 100 mm (3.9”)
Max. cutting speed 480 cuts/min
Belt speed 10–340 mm/sec (0.4-13.4 in/sec)
Machine length 2700 mm (106.3”)
Machine width 1000 mm (39.3”)
Machine height 1650 mm (65”)

Software

Benefits of JBT Marel Software for I-Cut PortionCutters

  • Real-time monitoring and control
  • Data collection gives insight to optimize portioning process
  • Cutting programs easily shared between multiples devices
  • Enhances traceability and quality assurance

Monitor and control portioning

The software solution for portioning lets you monitor and control your processing in real time. The software provides live dashboards showing data for key performance indicators such as throughput, yield and weight distribution. They give you a clear overview of actual production and highlight where improvements can be made or whether any corrective action needs to be taken to ensure production is running optimally. Remote program management allows you to easily control the portion cutter settings directly from the office. Cutting programs can be stored and shared among two or more portion cutters.

Get operational insight

Information about all pieces and portions is collected and stored in the database. Standardized, ready-to-print reports can then be created to give you an insight into operational performance on a daily, weekly or monthly basis. This statistical analysis takes away the guesswork and allows you to make data-driven decisions to optimize your portioning process.

Connect your business

JBT Marel Software can be implemented stand-alone with your portion cutter or it can be integrated with other JBT Marel processing equipment across a full-line solution. This gives you central control over production, leading to optimized processing, higher yields and complete traceability for each and every portion created.

Accessories

Option: Remote service access through Ethernet for maximum uptime
